2025 TCR Advanced 2 - PC Carbon

$2,999.00 Sale • Save $800.00

Size M/L

XS Sml Med M/L Lg XL

Only 1 left in stock

Pickup available at Cycle House Greensborough

Usually ready in 24 hours

Description

SYSTEM OPTIMIZATION

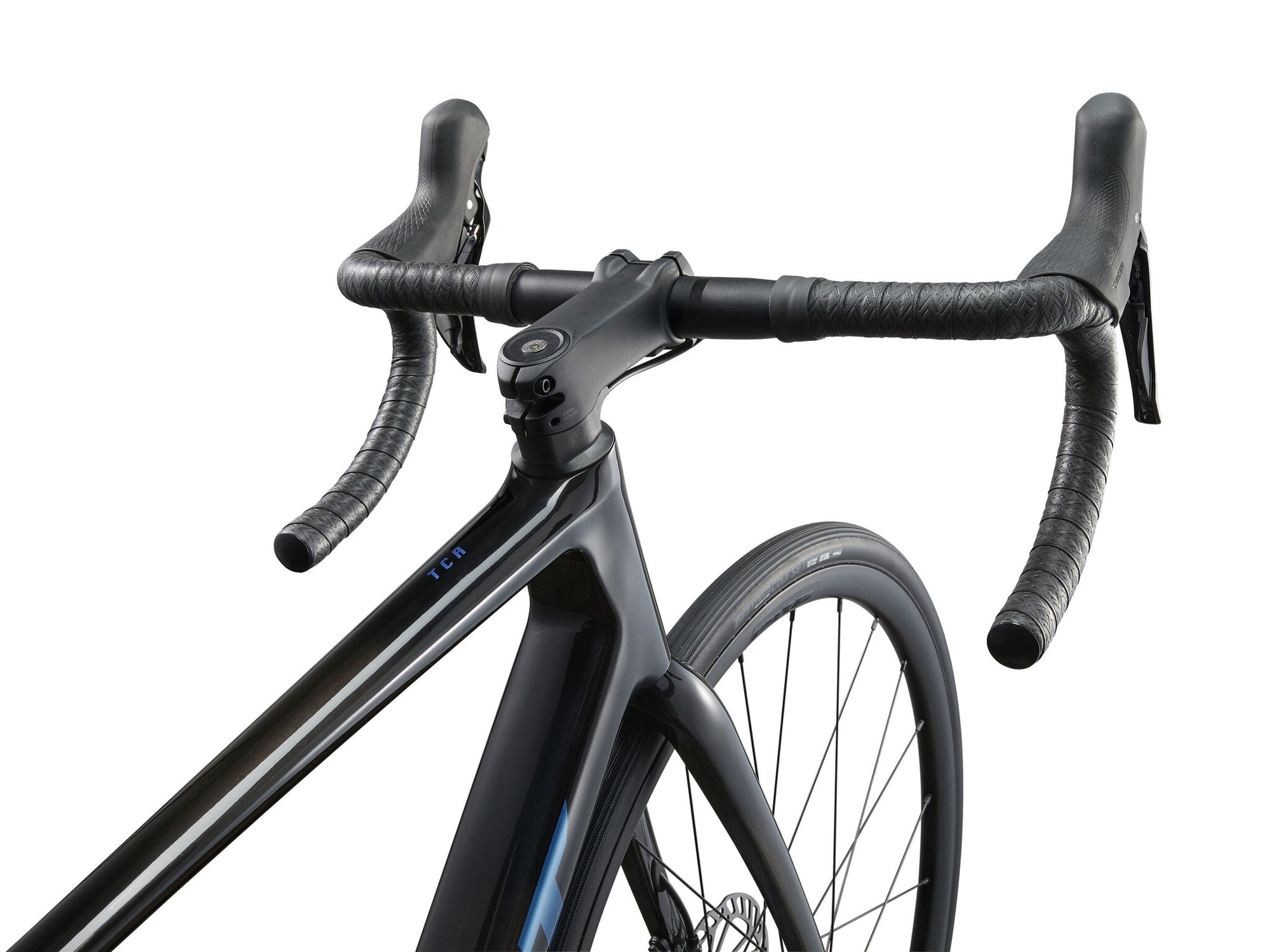

The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.

	XS	S	M	ML	L	XL
A Seat Tube Length (mm)	425	445	470	500	530	560
B Seat Tube Angle	74,5°	74,0°	73,5°	73,0°	73,0°	72,5°
C Top Tube Length (mm)	520	535	550	565	580	600
D Head Tube Length (mm)	120	130	145	165	185	200
E Head Tube Angle	71,0°	72,3°	73,5°	73,0°	73,0°	72,5°
F Fork Rake (mm)	45	45	45	45	45	45
G Trail (mm)	72	64	59	59	59	59
H Wheelbase (mm)	976	977	980	991	1006	1020
I Chain Stay Length (mm)	405	405	405	405	405	405
J Bottom Bracket Drop (mm)	72	69,5	69,5	67	67	67
K Stack (mm)	517	528	545	562	581	596
L Reach (mm)	376	383	388	393	402	412
M Stand Over Height (mm)	703	722	743	771	798	822
N Handlebar Width (mm)	400	400	420	420	440	440
O Stem Length (mm)	80	90	100	110	110	120
P Crank Length (mm)	170	170	172,5	172,5	175	175
Q Wheel Size	700C	700C	700C	700C	700C	700C

Specifications

Sizes

XS, S, M, M/L, L, XL
Colors

Carbon, Illusion White
Frame

Advanced-Grade Composite, 12x142mm thru-axle, disc
Fork

Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Handlebar

Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips

Stratus Lite 2.0
Stem

Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost

Giant Variant, composite, -5/+15mm offset
Saddle

Giant Approach
Pedals

N/A
Shifters

Shimano 105
Front Derailleur

Shimano 105
Rear Derailleur

Shimano 105
Brakes

Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
Brake Levers

Shimano 105
Cassette

Shimano 105, 12-speed, 11x34
Chain

KMC X12L-1

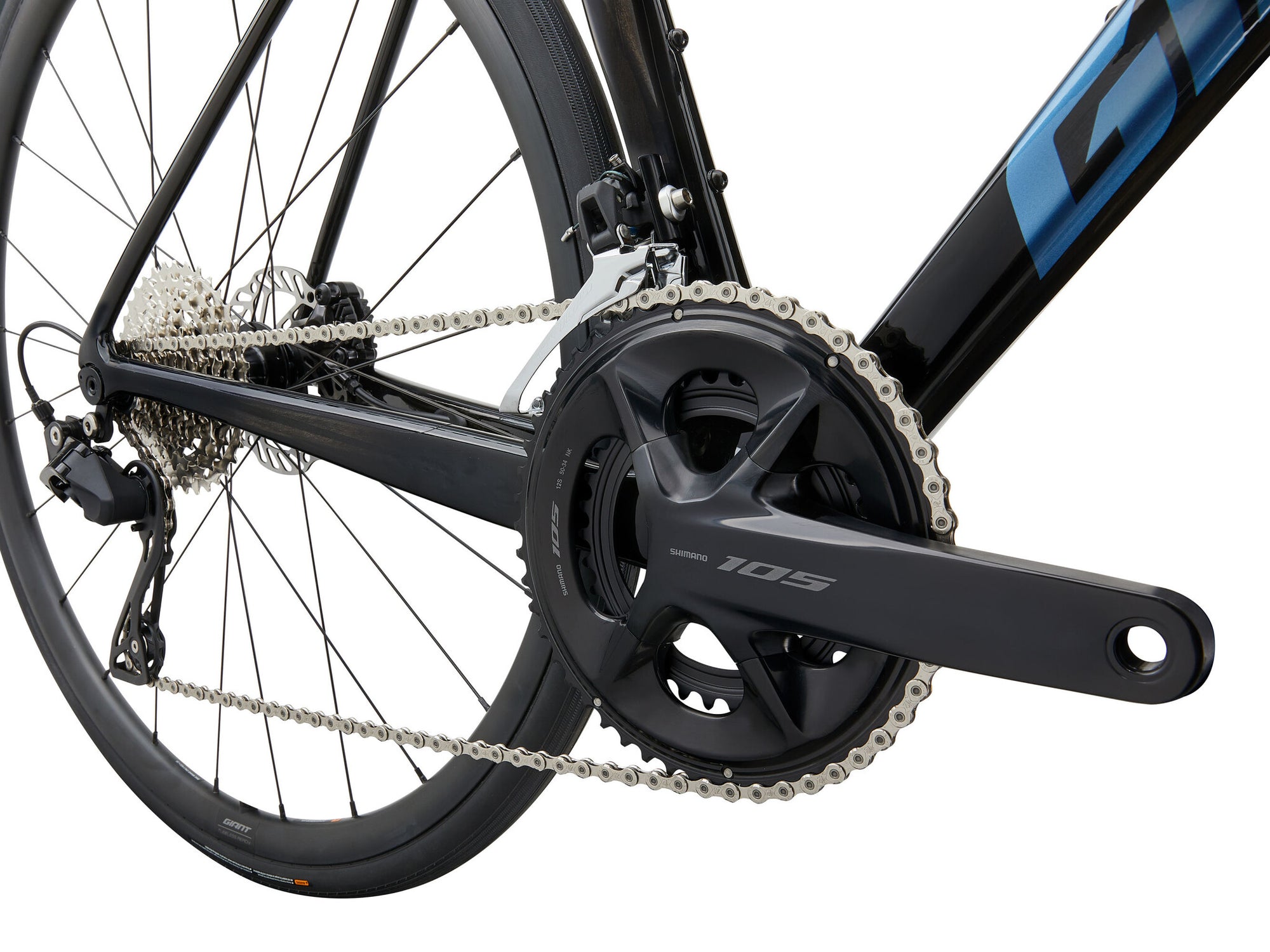

Crankset

Shimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket

Shimano, press fit
Rims

Giant P-R2, [F]25mm, [R]25mm
Hubs

12mm thru-axle
Spokes

stainless
Tires

Giant Gavia Course 1, tubeless, 700x25c (28mm), folding
Extras

tubeless prepared, 33mm max tire size
Max Tire Clearance

33mm
Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
