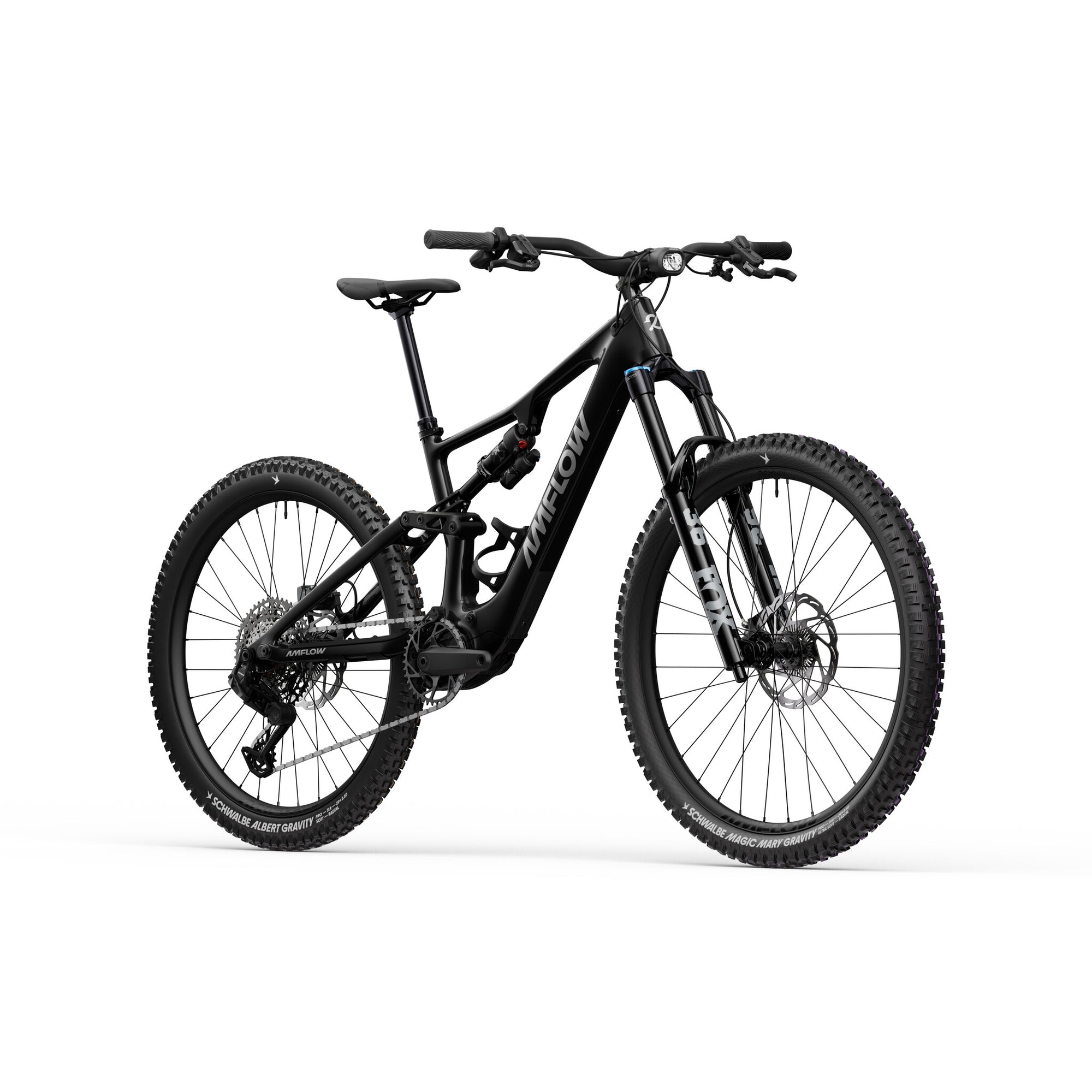

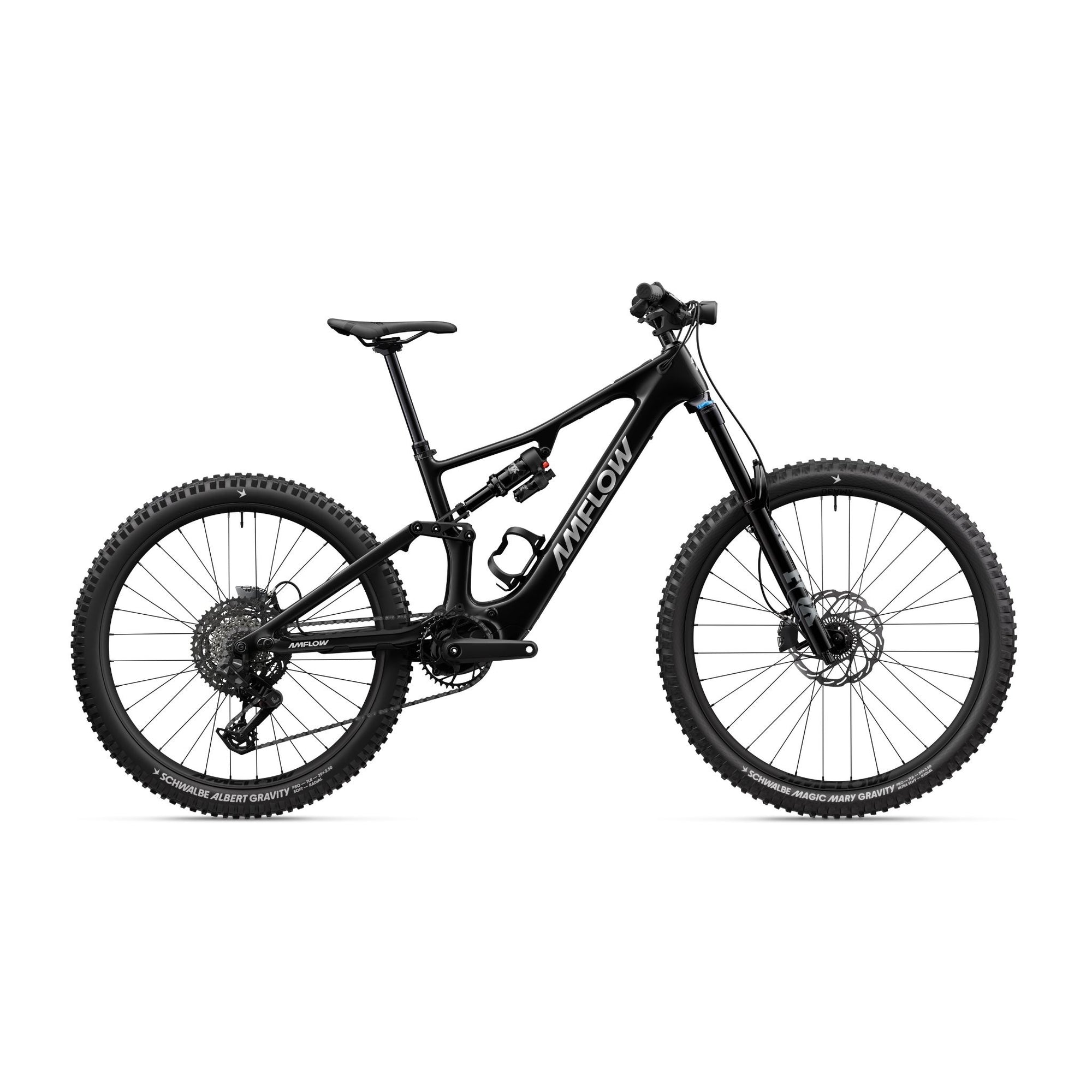

2026 Amflow PX Carbon Phantom Black

$9,999.00

Size Lg

Med Lg XL XXL

Only 1 left in stock

Pickup available at Cycle House Greensborough

Usually ready in 24 hours

Description

Amflow PX Carbon 700Wh Electric Full Suspension Mountain Bike in Phantom Black

The Amflow PX Carbon is a high-performance trail e-MTB designed to deliver confidence, capability, and adaptability across a wide range of terrain. Built around a lightweight carbon frame and a proven component package, it offers an ideal balance of performance and value.

Key Features

Carbon frame with 40 adjustable geometry configurations
The Avinox M2S Drive Unit uses sensors and smart algorithms for linear pedaling feel, with up to 150N·m ^[1] max. torque and 1500W ^[1] peak power.
FOX 36 Performance fork & Float X Performance shock
SRAM S1000 Eagle Transmission drivetrain
700Wh integrated battery with Avinox system
Alloy mullet wheelset (29” front / 27.5” rear)

Trail-Ready Performance
With 160mm travel from FOX suspension and a progressive geometry platform, the PX Carbon is built to handle demanding trails while remaining composed and predictable. The mullet wheel setup enhances agility without compromising stability.

Reliable Drivetrain & Power
The SRAM S1000 Eagle Transmission delivers smooth, precise shifting under load, while the 700Wh Avinox battery ensures long-range capability. Combined with intuitive controls and a clean integrated system, this bike is built for all-day riding.

Frameset

Frame: Amflow PX Carbon Frame, Phantom Black, 40 adjustable geometry configurations, compatible with 27.5″ and 29″ rear wheels
Fork: FOX 36 Performance (MY 2027), 160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Rear shock: FOX Float X Performance (MY 2027), 2-position lever, custom tune, LSR adjustment, 210×55mm, air shock

E-bike System

Display: Avinox Screen, 2-inch OLED Control Display
Battery: Avinox Integrated Battery, 700Wh
Controllers: Avinox Wireless Controllers, right and left sides
Charger: Avinox Fast Charger, 12A/508W

Drivertrain and brakes

Rear derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring, 38T for Avinox
Shift levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette, 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power supply: Avinox M2 Series Electronic Rear Derailleur Power Cable
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Front brake: Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Rear brake: Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Brake rotors: Magura Sensor Rotor (203mm, 2.5mm)
Brake mount: Amflow Dropper Remote Lever Mounting Bracket

Cockpit

Handlebar: Amflow Enduro Alloy Handlebar, 40mm rise, 800mm width, 35mm diameter, 5-degree upsweep, 9-degree backsweep
Grips: Amflow Enduro Grip 2 Lock-on Grips
Stem: Amflow Mountain Bike Split Stem, 35mm length, 35mm clamping diameter

Wheels

Wheelset: Amflow XMA-30 Mullet Version
Front rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rear rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls, 36T, HG
Front tyre: Schwalbe Magic Mary, 29×2.5 Gravity Pro, Radial
Rear tyre: Schwalbe Albert, 27.5×2.5 Gravity Pro, Radial

Other parts

Saddle: Amflow Mountain Saddle
Dropper post: Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm), M/L frame: 190mm, XL frame: 210mm, XXL frame: 230mm
Front light: Avinox Front Light
Rear light: Rear Light
Bottle cage: Amflow Bottle Cage
Geometry systems: Three Geometry Adjustment Systems
Dropper spacers: 5/10mm Dropper Post Travel Reducing Spacer
Torque wrench: Included
Frame protection: Clear Frame Protection Film
Shock pump: Included
Guide: Quick Start Guide
SIM card: IoT Nano SIM Card

Geometry

		M	L	XL	XXL
A	Reach	455mm	478mm	503mm	528mm
B	Stack Height	622.1mm	632.2mm	645.9mm	659mm
C	Standover Height	780mm	785mm	790mm	795mm
D	Front Center	793.1mm	820.9mm	852mm	883.9mm
E	Fork Length	570mm	570mm	570mm	570mm
F	Wheelbase	1231.3mm	1259.1mm	1290.2mm	1322.1mm
G	Chainstay Length	438/451mm	438/451mm	438/451mm	438/451mm
H	Bottom Bracket Drop	10.5/23.7mm	10.5/23.7mm	10.5/23.7mm	10.5/23.7mm
I	Bottom Bracket Height	345.5mm	345.5mm	345.5mm	345.5mm
J	Effective Top Tube Length	586.9mm	619.7mm	642.8mm	672.2mm
K	Head Tube Angle	64.2°	64.2°	64.2°	64.2°
L	Head Tube Length	109mm	120mm	135mm	150mm
M	Actual Seat Tube Angle	72°	72°	72°	72°
N	Effective Seat Tube Angle	78°	78°	78°	77.7°
O	Seat Tube Height	415mm	427mm	447mm	466mm
