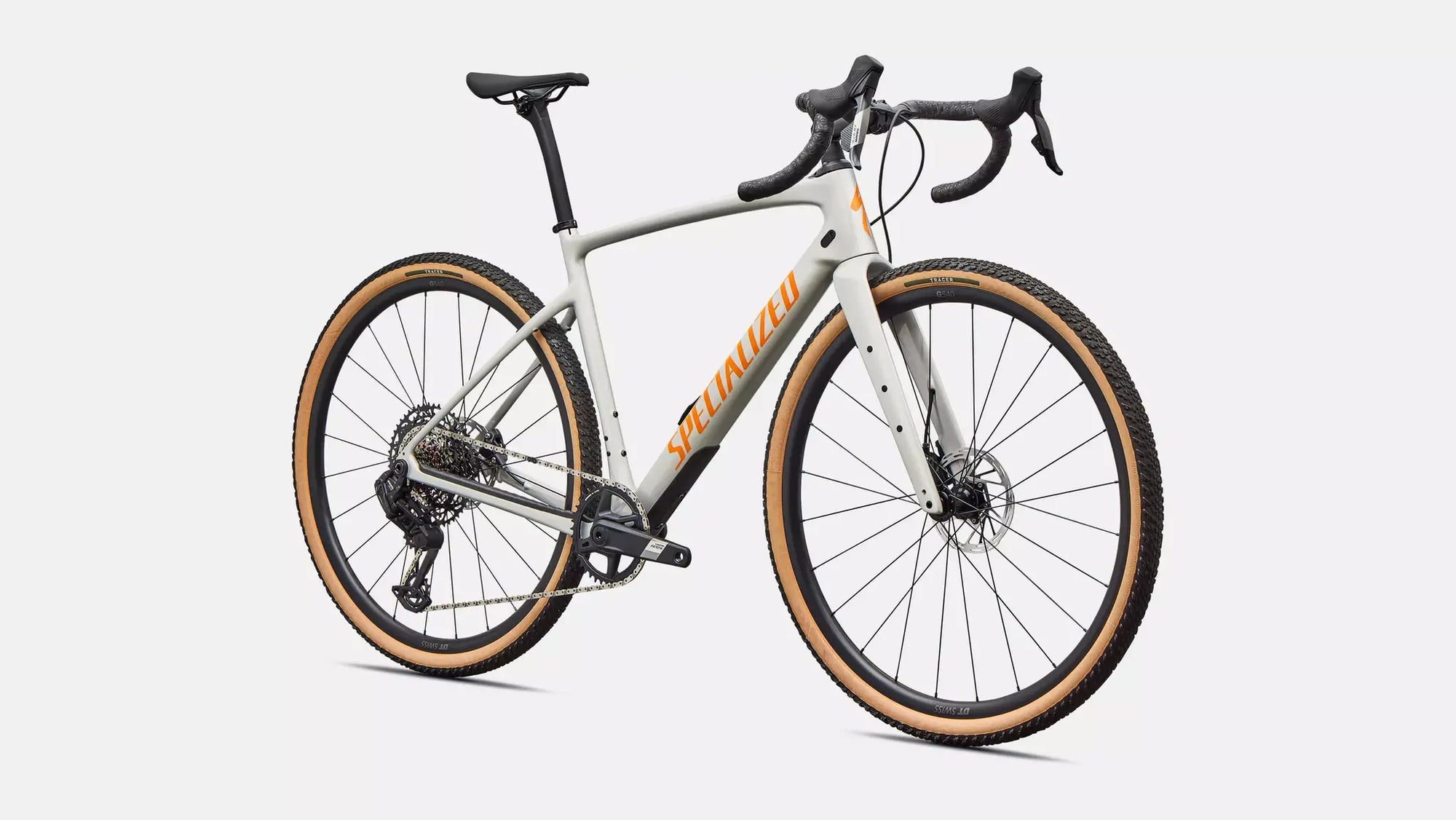

2026 Specialized Diverge 4 Comp Carbon
Pickup available at Cycle House Greensborough
Usually ready in 24 hours
2026 Specialized Diverge 4 Comp Carbon
Color: Dolomite Metallic/orange Zest | Size: 56
-
Cycle House Greensborough
Pickup available, usually ready in 24 hours
167 Para Road
Greensborough VIC 3088
Australia
Description
Diverge 4
The Ultimate Getaway Vehicle
Race-tuned. Adventure-approved. The Diverge 4 gravel bike in E5 Alloy is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and internal storage for the first time ever on an alloy bike, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
At a Glance
Use: Gravel Adventure/Race
Frameset: FACT 9r Carbon
Suspension: Future Shock 3.2
Drivetrain/Wheels: SRAM Apex AXS / S1000 Transmission / DT G540
Storage: SWAT 4.0
Weight: Diverge Comp: 9.70kg
Technical Specs
- Frame
- Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
- Fork
- Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
- Front Brake
- SRAM Apex, hydraulic disc
- Rear Brake
- SRAM Apex, hydraulic disc
- Cassette
- SRAM 1270 Transmission Cassette, 12 Spd,10-52t
- Shift Levers
- SRAM Apex AXS
- Crankset
- SRAM Apex DUB Wide, 40t
- Chain
- SRAM GX T-Type 12 speed
- Bottom Bracket
- SRAM DUB BSA 68 Wide
- Rear Derailleur
- SRAM S-1000 Eagle AXS Transmission
- Front Wheel
- DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Rear Wheel
- DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Front Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
- Rear Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
- Inner Tubes
- Presta, 700x32-50mm
- Saddle
- Body Geometry Power Sport, steel rails
- Stem
- Future Stem, Comp
- SeatPost
- Roval Terra Carbon Seat Post, 20mm Offset
- Handlebars
- Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
- Seat Binder
- Specialized Alloy, 30.8mm
- Tape
- Supacaz Super Sticky Kush
- SWAT
- SWAT 4.0 internal downtube storage
- Product ID
- 223513
- Weight Size
- 56
- Weight
- 9.7 kg (21 lb, 6.2 oz)
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 330 | 330 | 380 | 380 | 380 | 380 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
