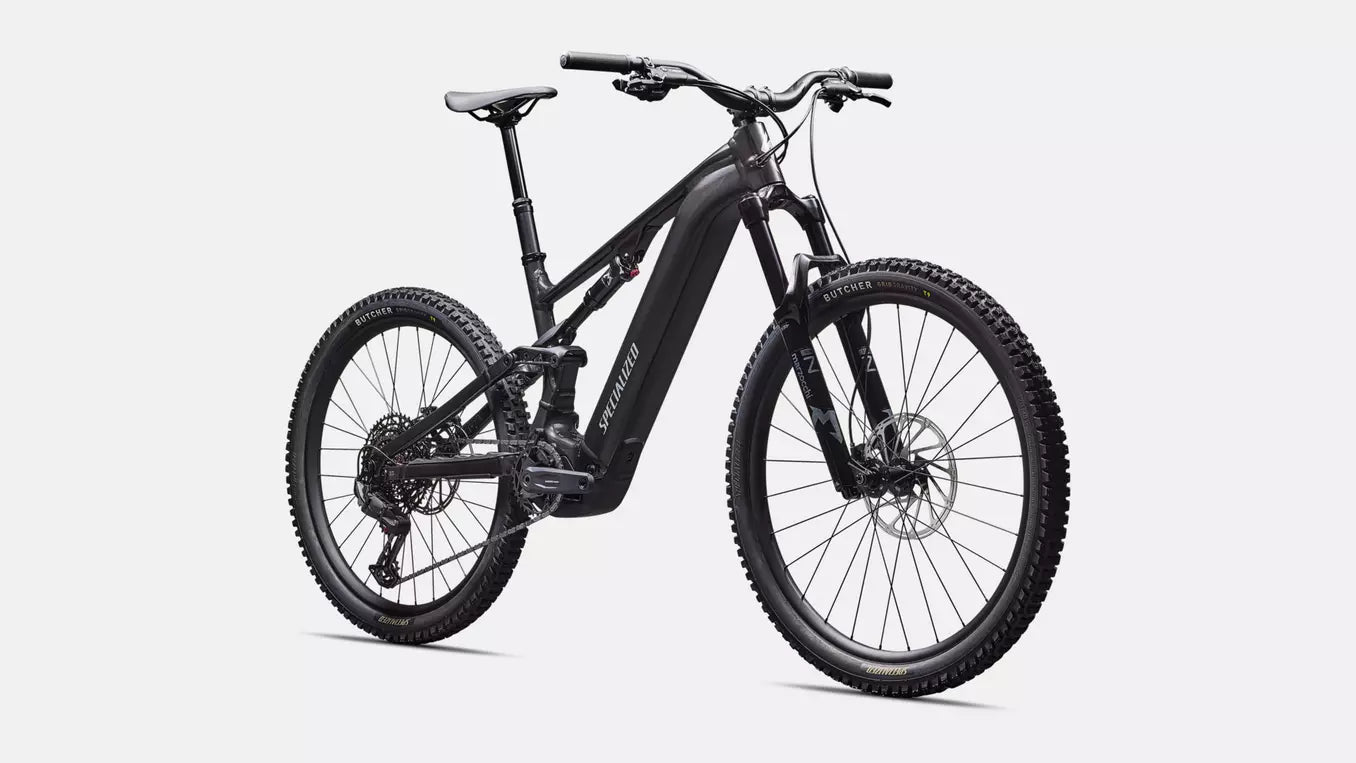

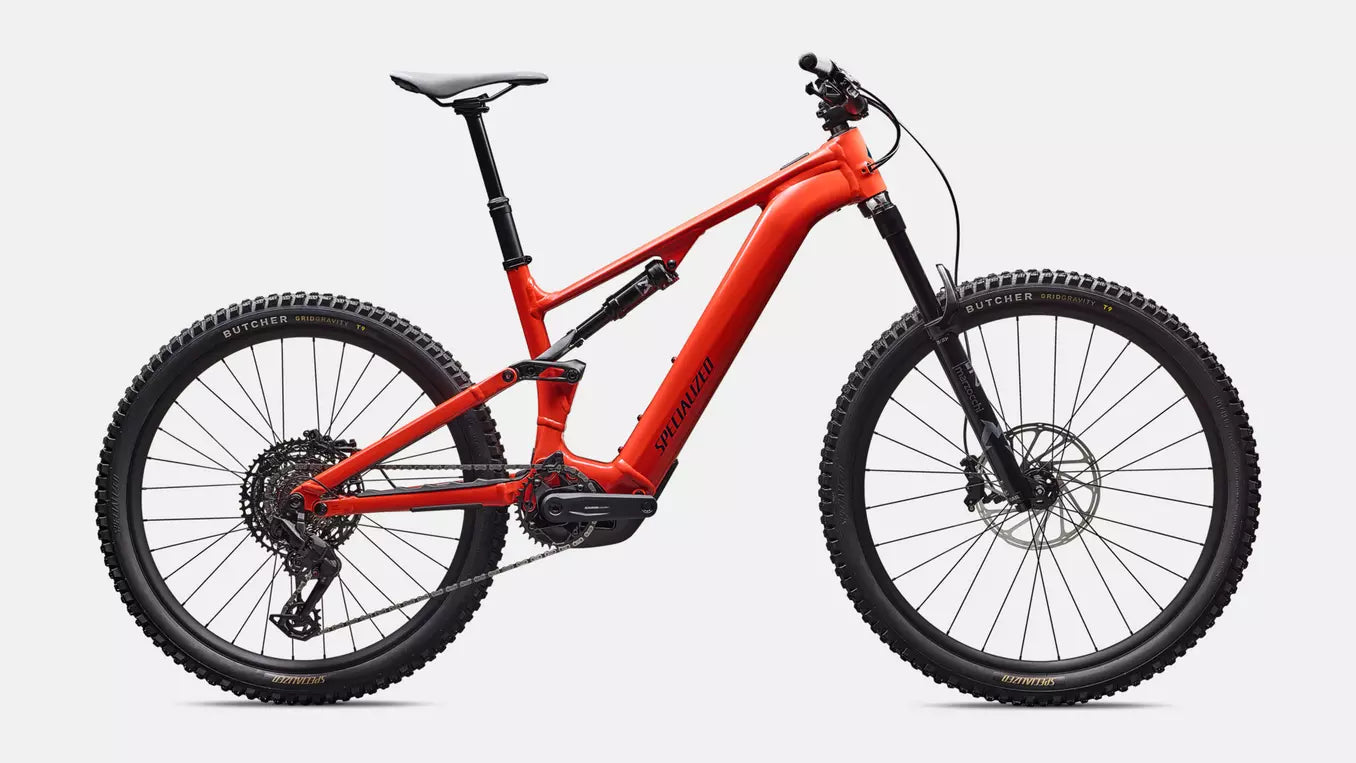

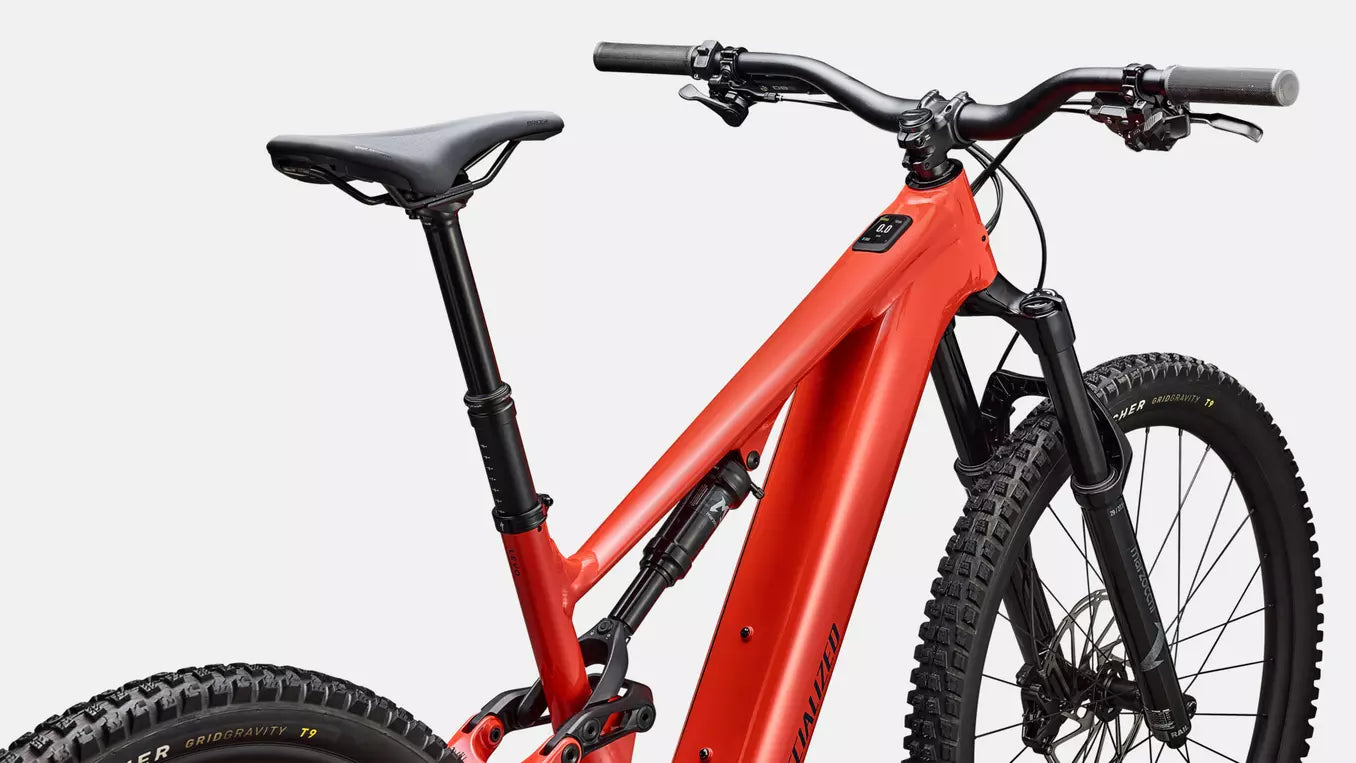

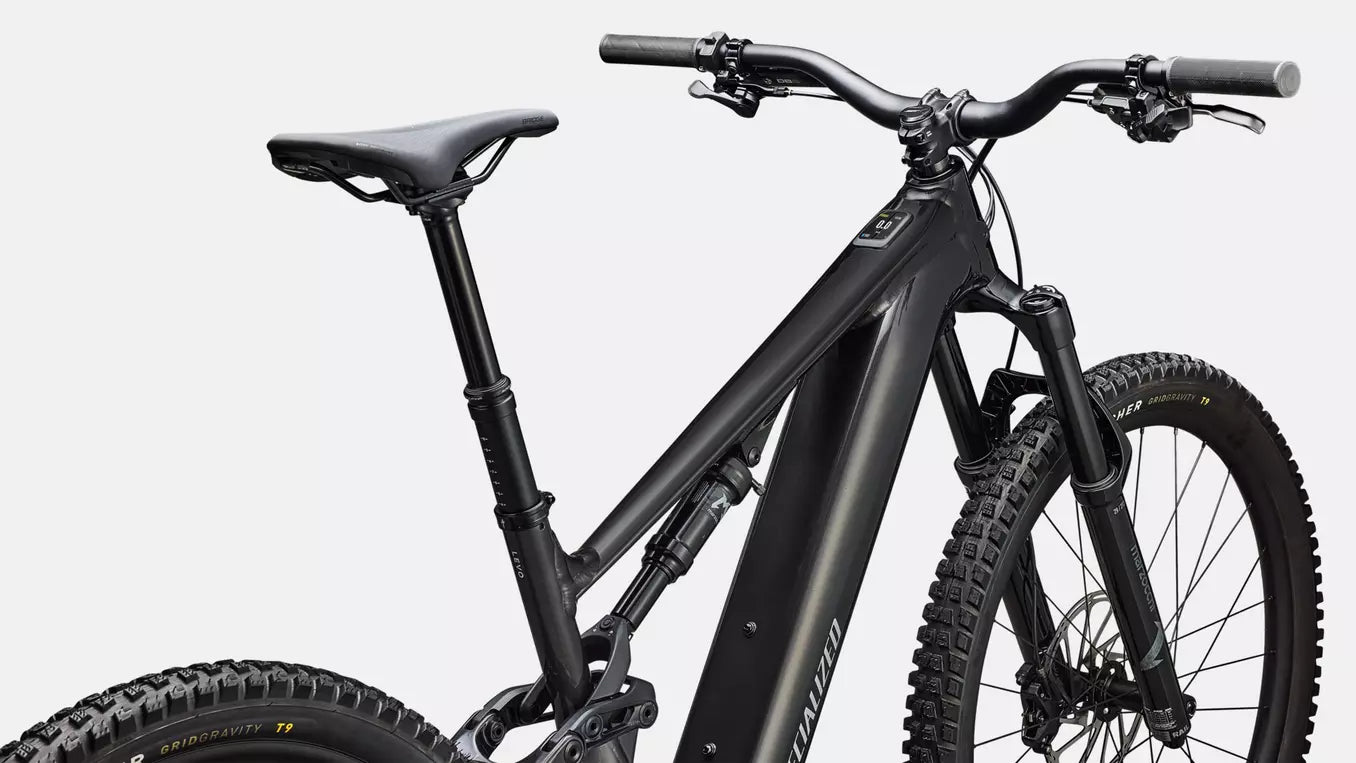

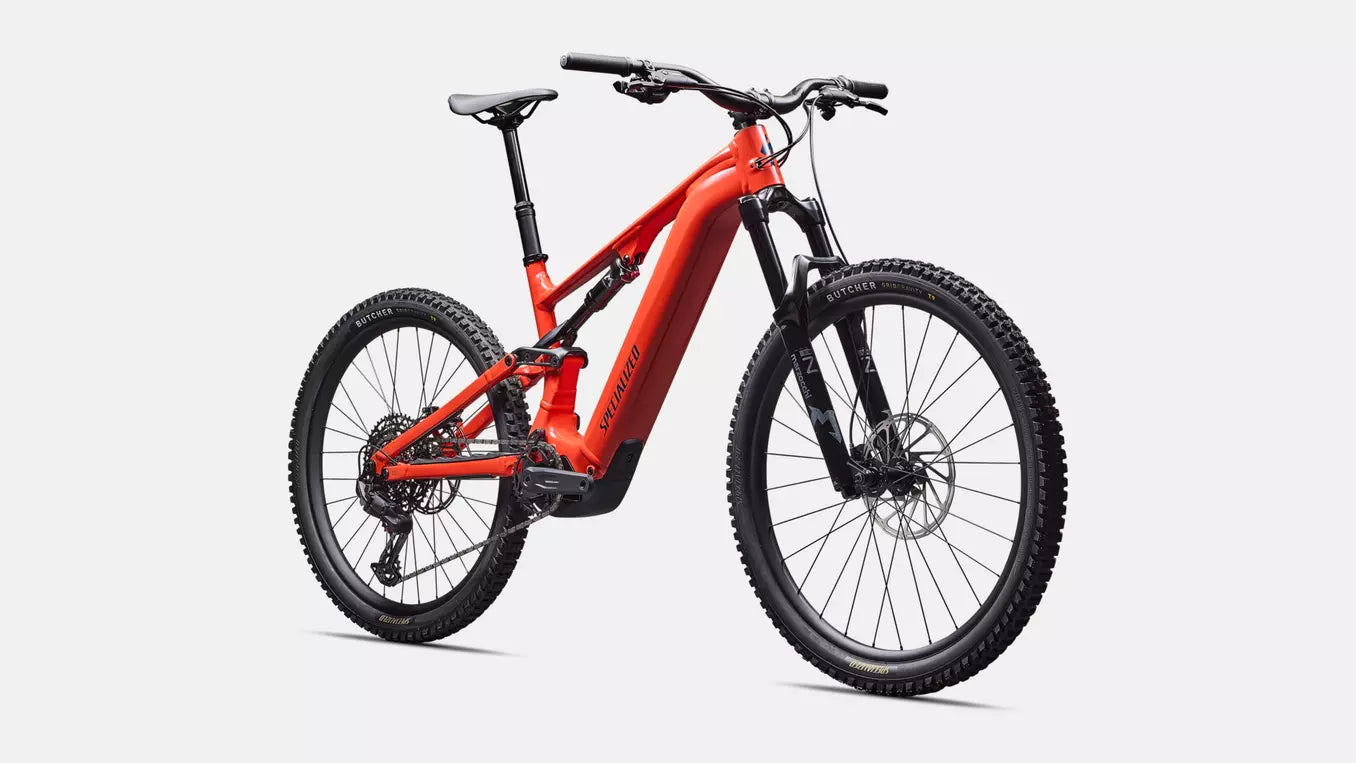

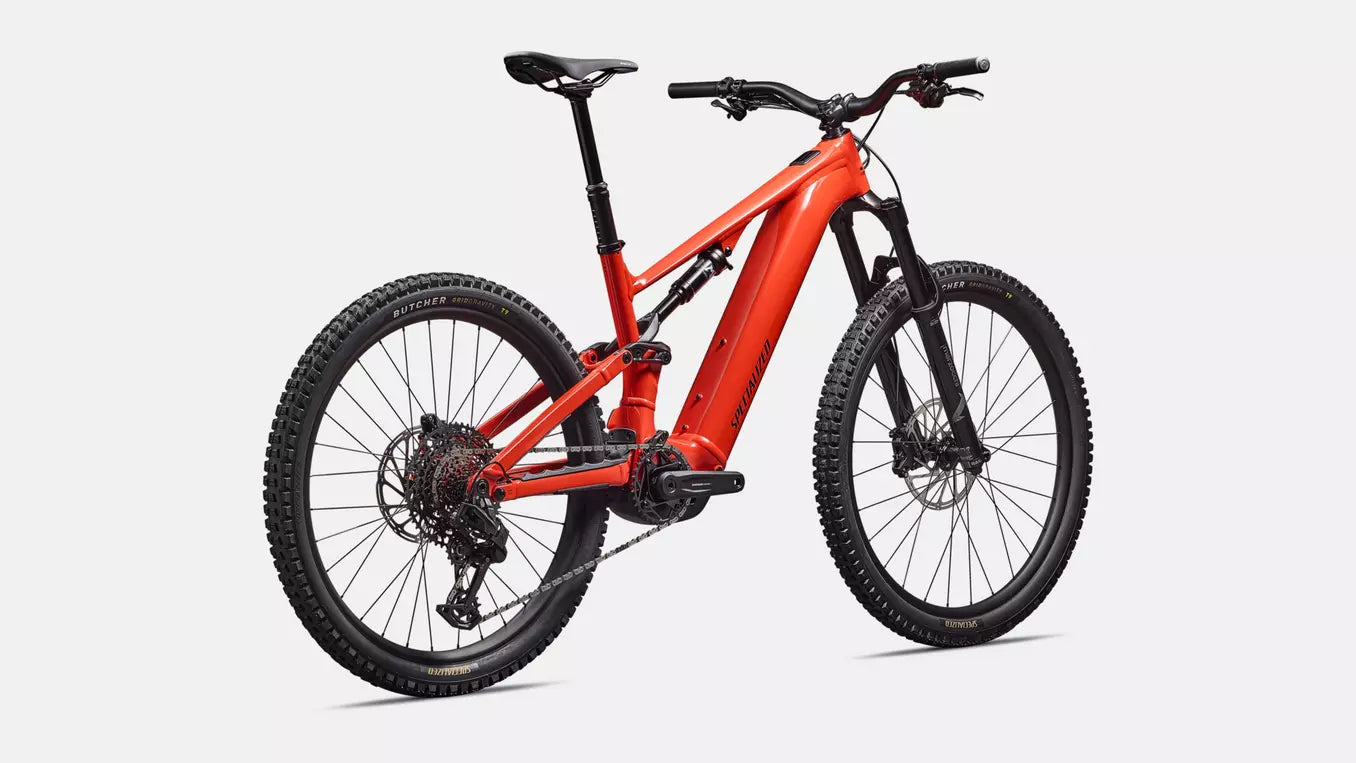

2026 Specialized Turbo Levo 4 Alloy
Pickup available at Cycle House Greensborough
Usually ready in 24 hours
2026 Specialized Turbo Levo 4 Alloy
Color: Gloss Metallic Obsidian / Silver Dust | Size: S3
-
Cycle House Greensborough
Pickup available, usually ready in 24 hours
167 Para Road
Greensborough VIC 3088
Australia
Description
Turbo Levo 4, Where Super Meets Natural
SuperNatural Power, Ride, and Range
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
At a Glance
Use
Full Power E-MTB Trail
E-System
Specialized 3.1 Motor w/ 666 Watts & 101Nm, 840Wh Battery, up to 5.33 hour range
Frame
Premium M5 Alloy, Geo Adj & SWAT Storage
Suspension
Front: 160mm Marzocchi Bomber Z1
Rear: 150mm Marzocchi Bomber Inline (shock subject to upgrade)
Drivetrain
SRAM 70 Eagle T-Type Mechanical
Wheels
Specialized Alloy Rims / Bear Pawls hubs
Technical Specifications
- UI/Remote
- All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
- Motor
- All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
- Charger
- Specialized 4amp charger
- Battery
- 840Wh battery
- Seat Binder
- Alloy, 38.6mm
- Frame
- All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
- Rear Shock
- *Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
- Fork
- Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
- Front Brake
- SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
- Rear Brake
- SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
- Cassette
- XS-1270, 12-speed, 10-52t
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Chain
- SRAM Eagle 70 T-Type Flattop Chain
- Rear Derailleur
- SRAM Eagle 70 T-Type
- Shift Levers
- SRAM 70 trigger, 12-speed, single click
- Crankset
- SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
- Rear Tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
- Front Tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
- Spokes
- DT Swiss Industry
- Front Hub
- Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Rear Hub
- Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
- Rims
- Specialized 29, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta valve
- Stem
- Alloy Trail Stem, 35mm bar bore
- Handlebars
- Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
- Saddle
- Body Geometry Bridge Saddle, steel rails
- Grips
- Specialized Trail Grips
- SeatPost
- TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
- SWAT
- SWAT internal downtube storage
- Product ID
- 221347
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
- Weight
- 26.08 kg (57 lb, 7.8 oz)
- Weight Size
- S4
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 155 | 155 | 155 | 155 | 155 | 155 |
| Handlebar Width | 780 | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 100 | 125 | 150 | 170 | 200 | 200 |
| Stack | 609 | 618 | 626 | 638 | 652 | 667 |
| Reach | 407 | 435 | 455 | 480 | 505 | 535 |
| Headtube Length | 94 | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle | 64 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Height | 355 | 350 | 350 | 350 | 350 | 350 |
| BB Drop | 24.13 | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail | 132 | 132 | 137 | 132 | 132 | 132 |
| Fork Length (full) | 577 | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Front Center | 744 | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1179 | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal) | 556 | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height | 753 | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length | 379 | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 76 | 77 | 77 | 77 | 77 | 77 |
| Saddle Height for Effective ST Angle | 645 | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion | 264 | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
