2027 Liv Tempt 4
Pickup available at Cycle House Greensborough
Usually ready in 24 hours
2027 Liv Tempt 4

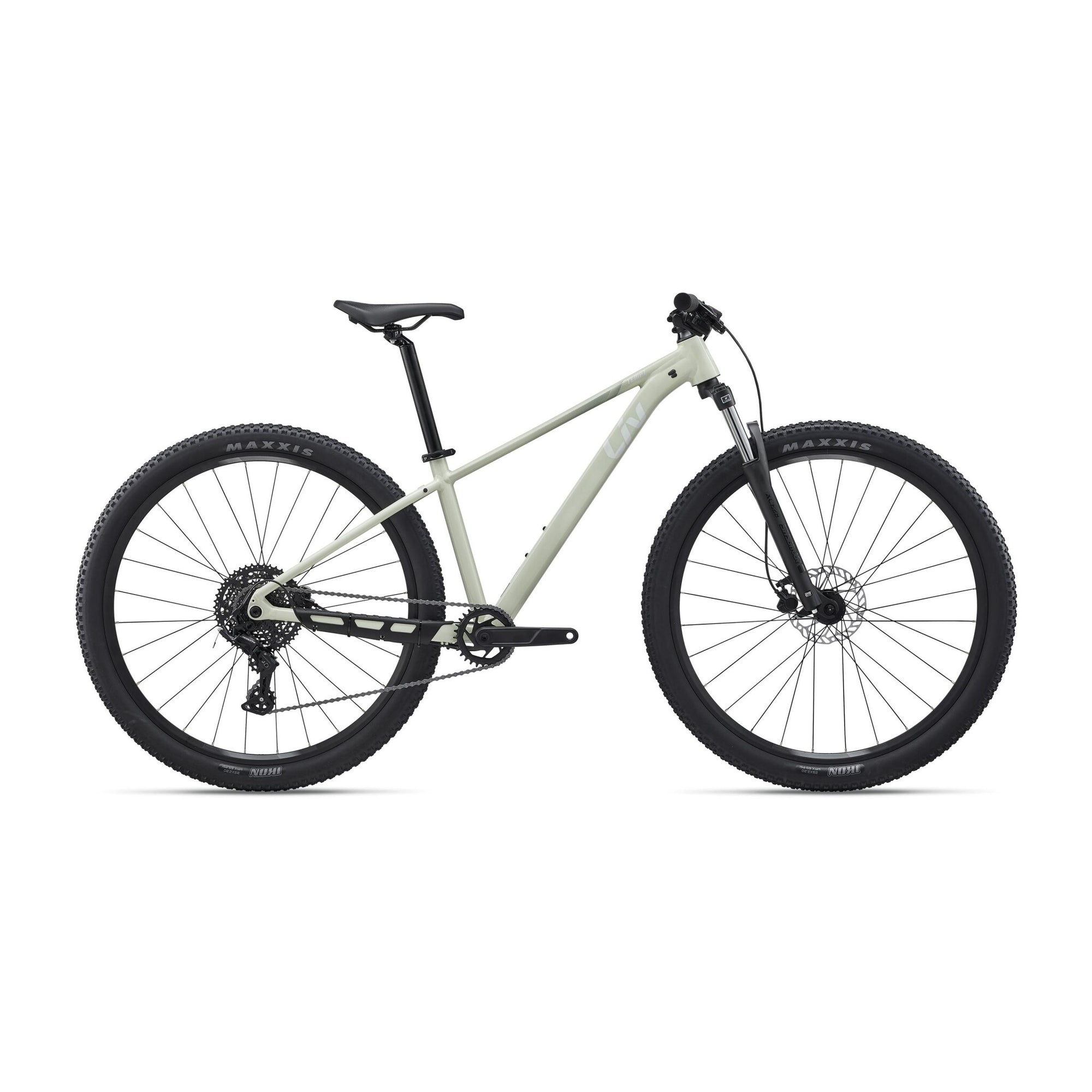

"Color: Pale Moss" | "Size: Sml (29)"
-
Cycle House Greensborough
Pickup available, usually ready in 24 hours
167 Para Road
Greensborough VIC 3088
Australia
Description
Modern MTB Design
Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)
Off-Road Control
The new geometry is optimised for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tyres (up to 2.4 inches) for traction and grip on technical terrain.
Light and Durable
The all-new ALUXX aluminium frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
-
- XS (27.5")
- 150 cm
163 cm
-
- S (27.5")
- 158 cm 169 cm
-
- S (29")
- 158 cm 169 cm
-
- M (29")
- 164 cm 175 cm
| XS (27.5") | S (27.5") | S (29") | M (29") | |
|---|---|---|---|---|
| A Seat Tube Length (mm) | 330 | 365 | 380 | 410 |
| A1 Seat Post Insertion Depth (mm) | 280 | 310 | 330 | 360 |
| B Seat Tube Angle | 74.0° | 74.0° | 74.5° | 74.5° |
| C Top Tube Length (mm) | 538 | 558 | 571 | 599 |
| D Head Tube Length (mm) | 90 | 95 | 90 | 100 |
| E Head Tube Angle | 67.0° | 67.0° | 67.5° | 67.5° |
| F Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G Trail (mm) | 105.2 | 105.2 | 108.9 | 108.9 |
| H Wheelbase (mm) | 1080 | 1101 | 1129 | 1158 |
| I Chain Stay Length (mm) | 440 | 440 | 455 | 455 |
| J Bottom Bracket Drop (mm) | 45 | 45 | 55 | 55 |
| K Stack (mm) | 548 | 553 | 593 | 602 |
| L Reach (mm) | 381 | 400 | 407 | 432 |
| M Stand Over Height (mm) | 680 | 689 | 689 | 708 |
| O Stem Length (mm) | 40 | 40 | 40 | 50 |
| P Crank Length (mm) | 165 | 165 | 170 | 170 |
Sizes
27.5: XS, S 29: S, M, L, XL
Colours

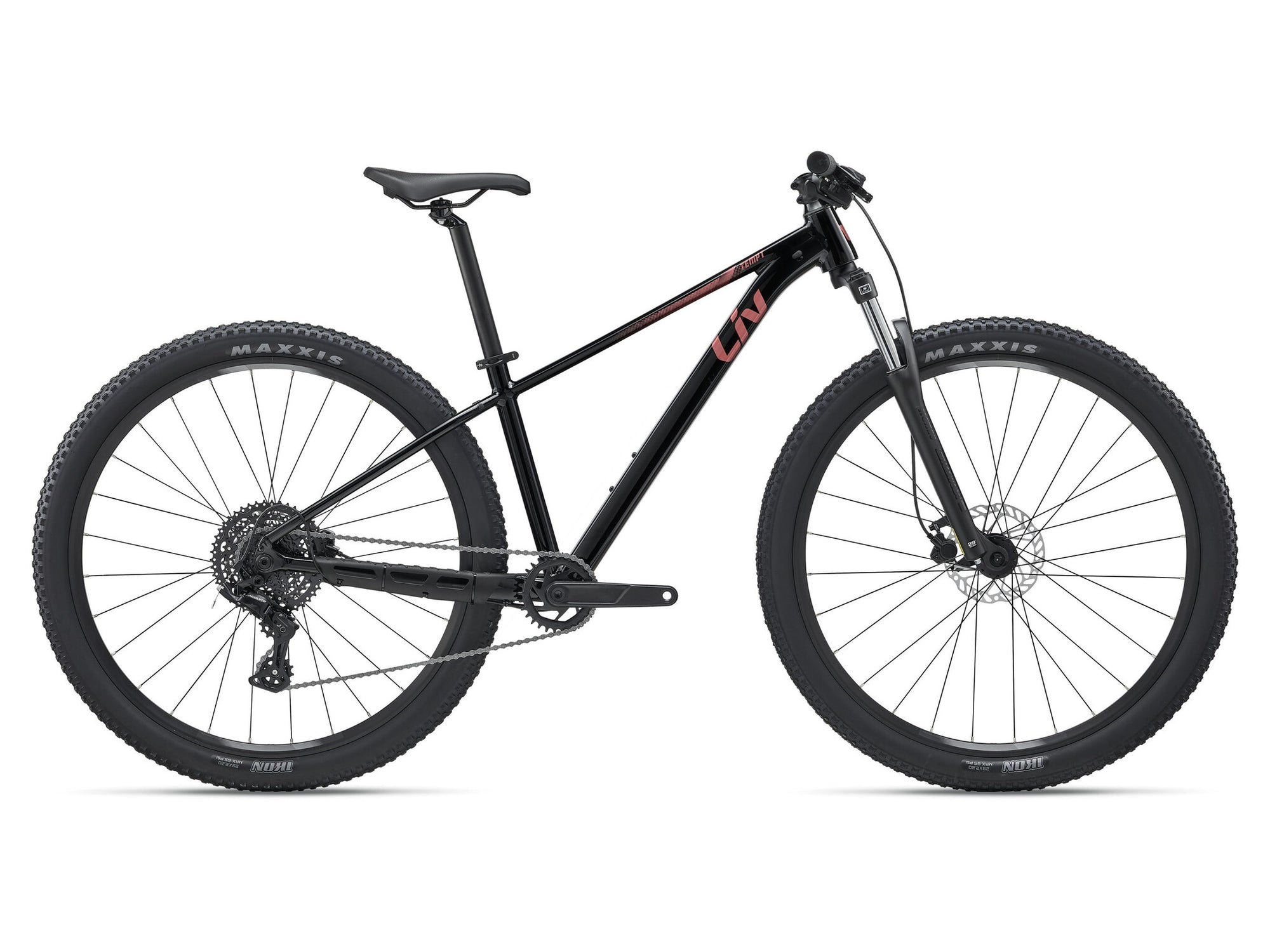

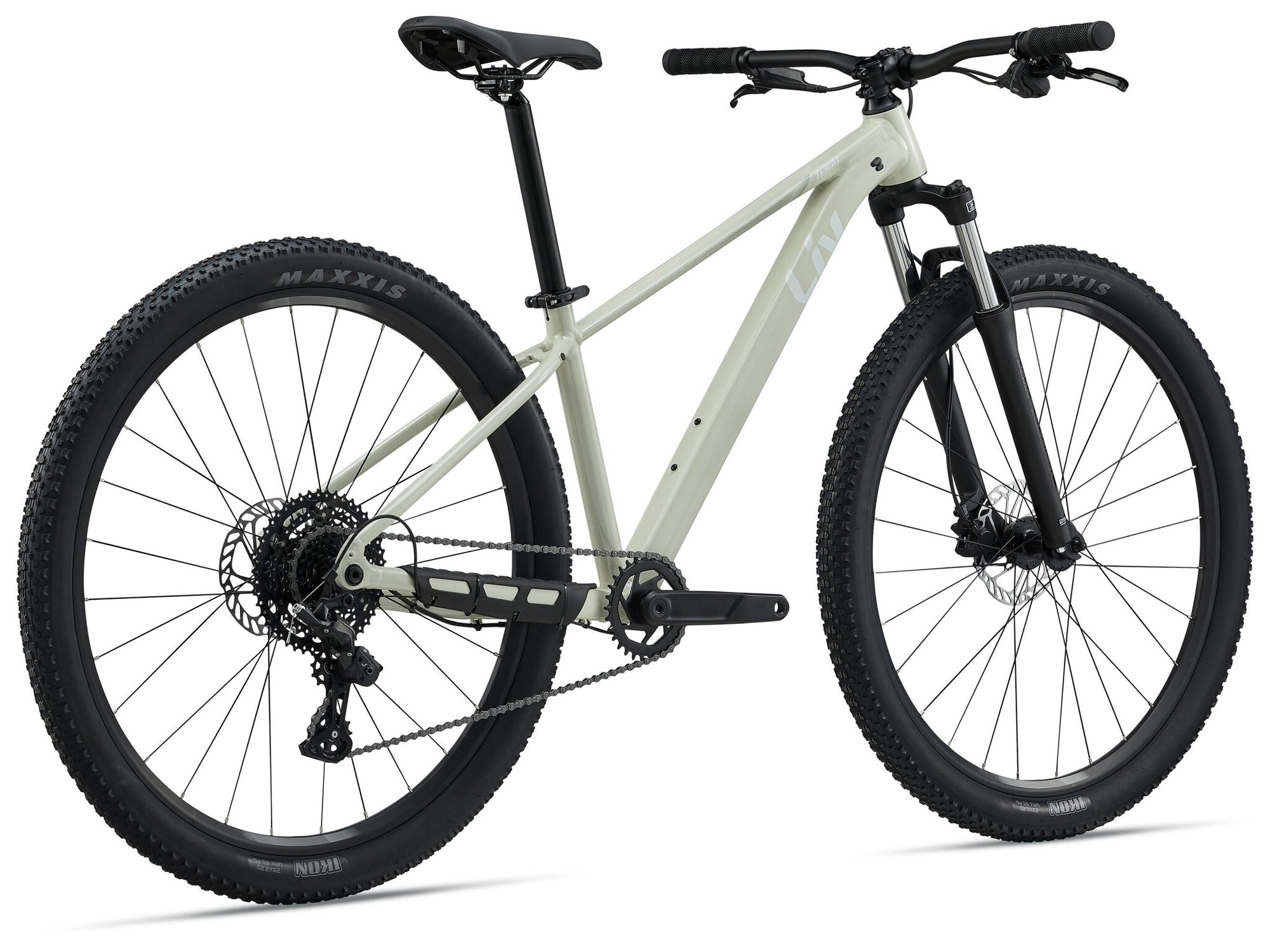

Black, Pale Moss
Frame
ALUXX-Grade aluminium, disc
Fork
SR Suntour XCE 28, coil spring, QR, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29)
Shock
N/A
Handlebar
Giant Connect Trail, 31.8mm
Grips
Liv Sole-O
Stem
Giant Sport, 7-degree XS: 40mm (27.5) S: 40mm (27.5) / 40mm (29) M: 50mm (29)
Seatpost
Giant Sport, 30.9mm
Saddle
Liv ErgoContact Trail
Pedals
MTB caged
Shifters
microSHIFT Acolyte, 1x8
Front Derailleur
N/A
Rear Derailleur
microSHIFT Acolyte, M5185M w/clutch
Brakes
Tektro HD TKD-176, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers
Tektro HD TKD-176
Cassette
microSHIFT Acolyte H083, 12x46
Chain
KMC 8.3
Crankset
ProWheel EPRO, 30t (29"), 32t (27.5") XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29)
Bottom Bracket
Cartridge
Rims
Giant GX03V 29 or 27.5, alloy, double wall, 28H
Hubs
Alloy, [F] 9mm QR, [R] 12x142 thru-axle
Spokes
Stainless, 14g
Tyres
Maxxis Ikon 27.5" or 29x2.2", wire bead
Max Tyre Clearance
2.4" max tyre size
Max Chainring Size
32t max chainring size
