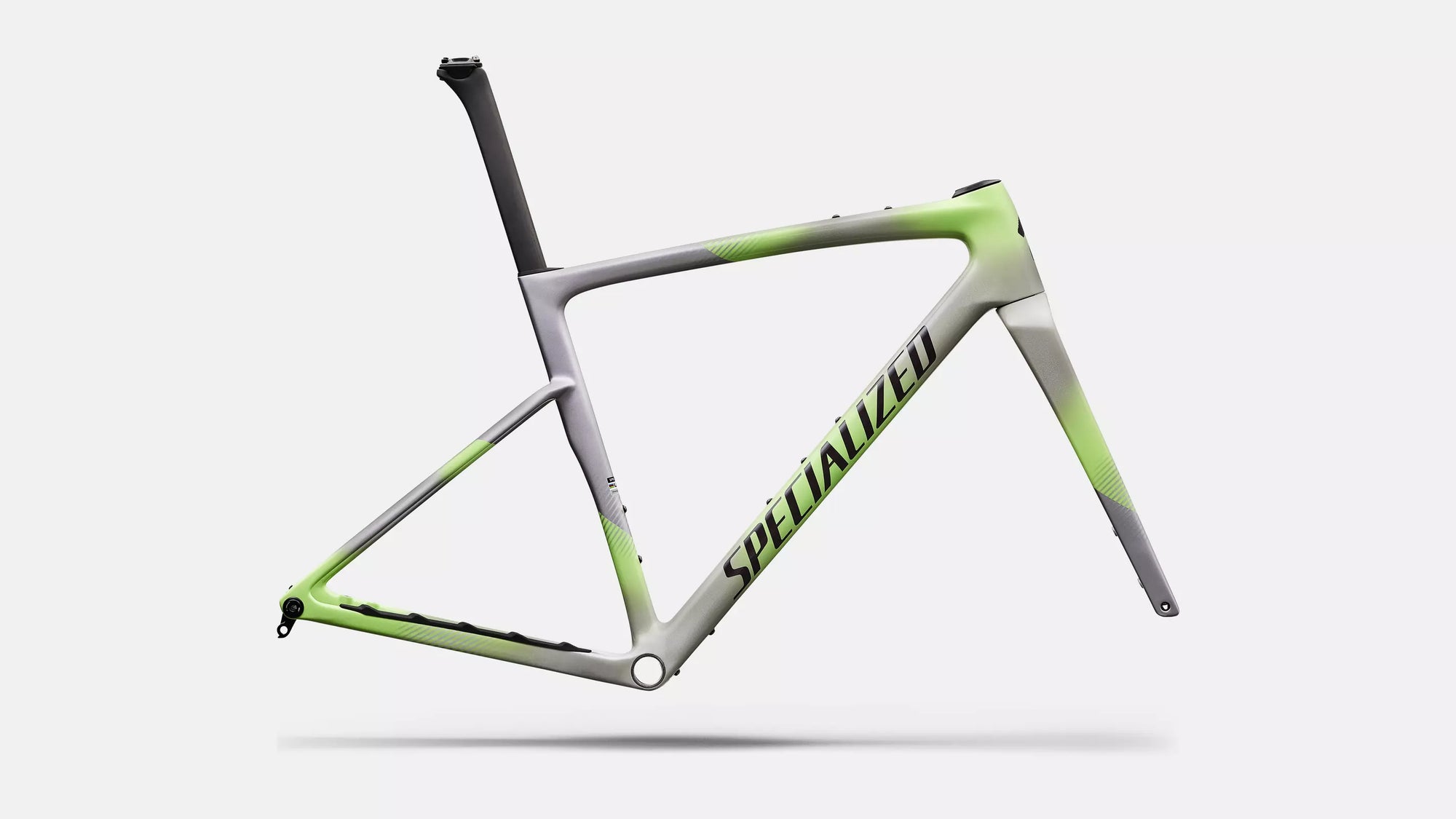

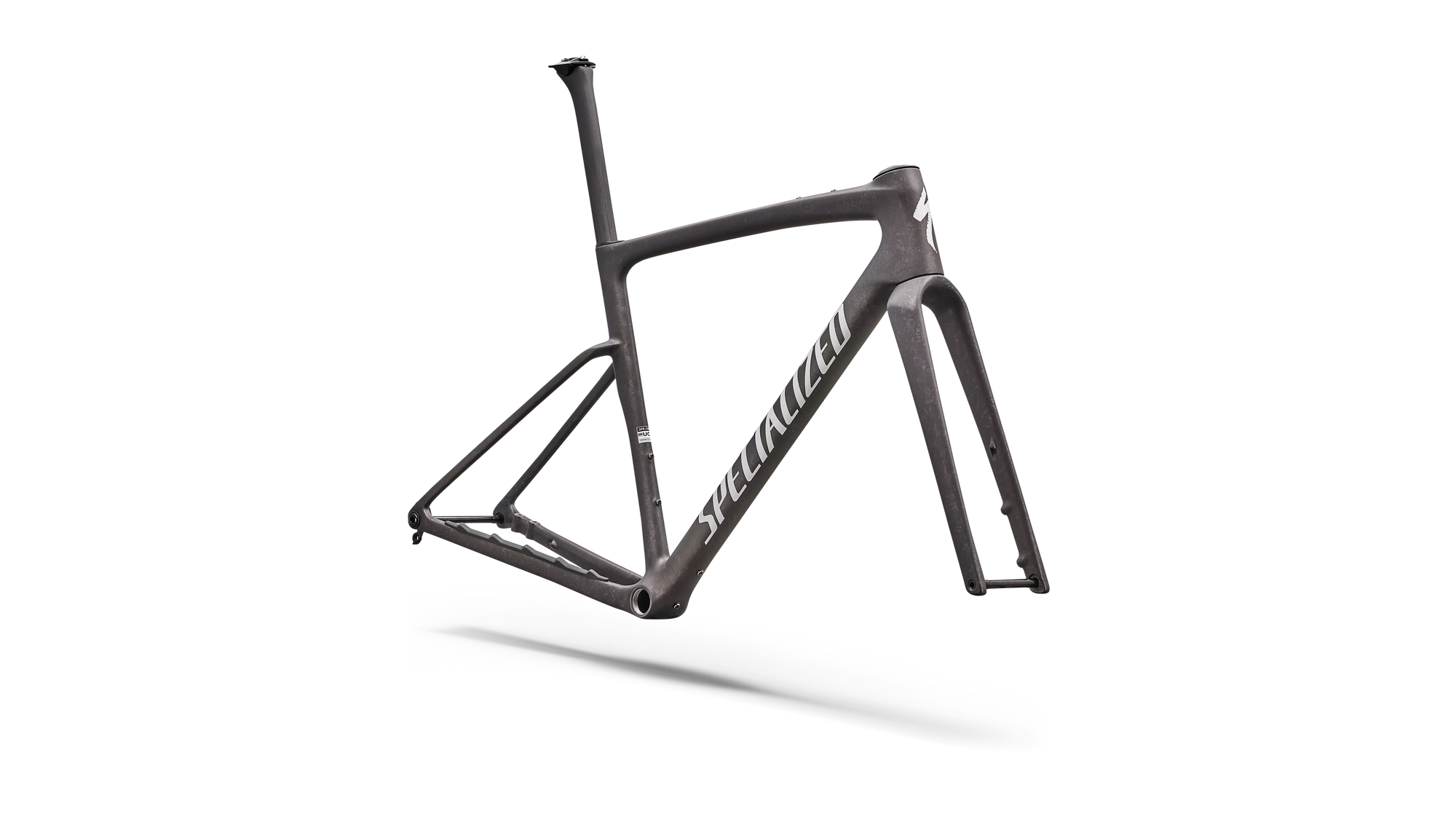

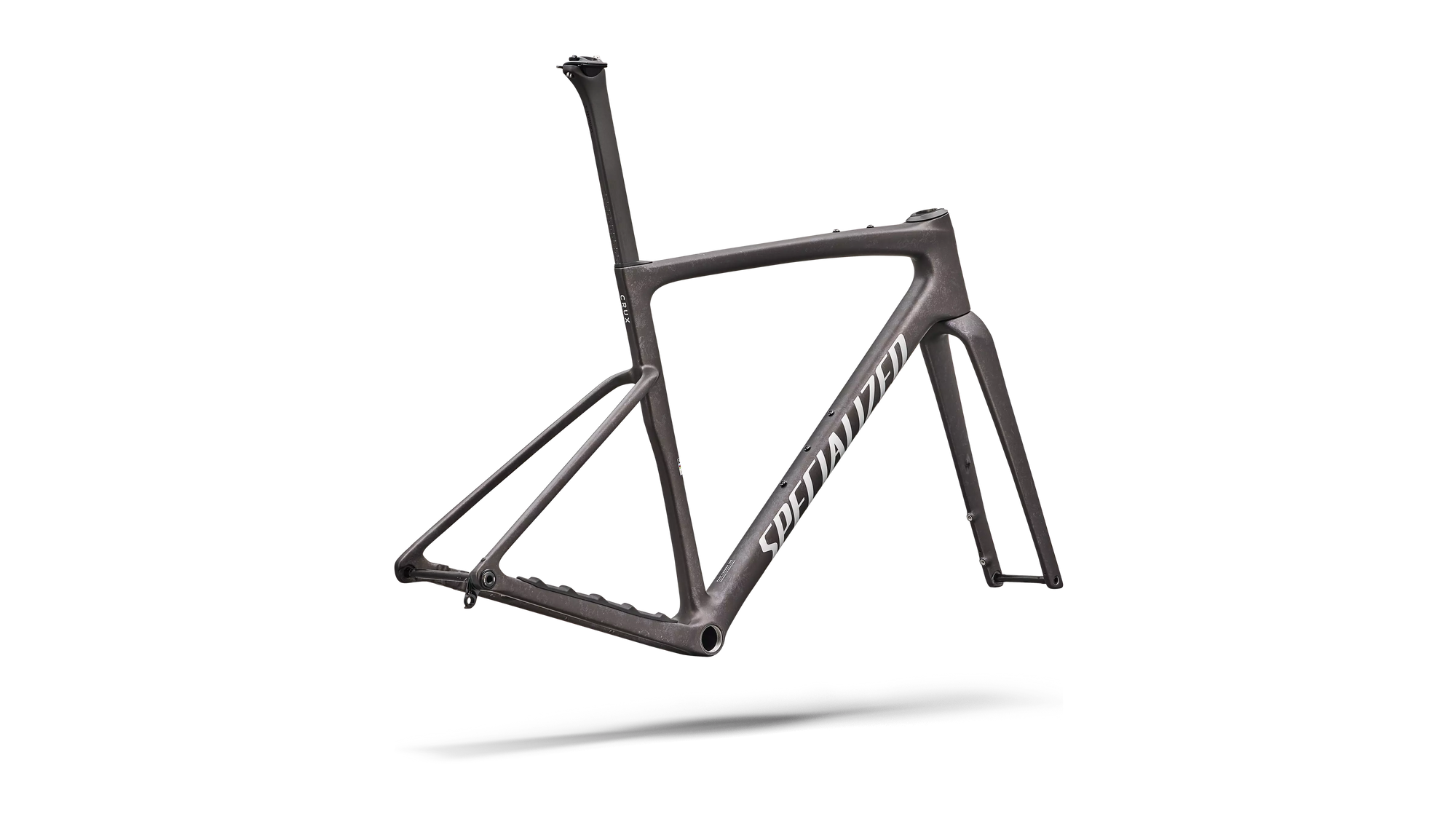

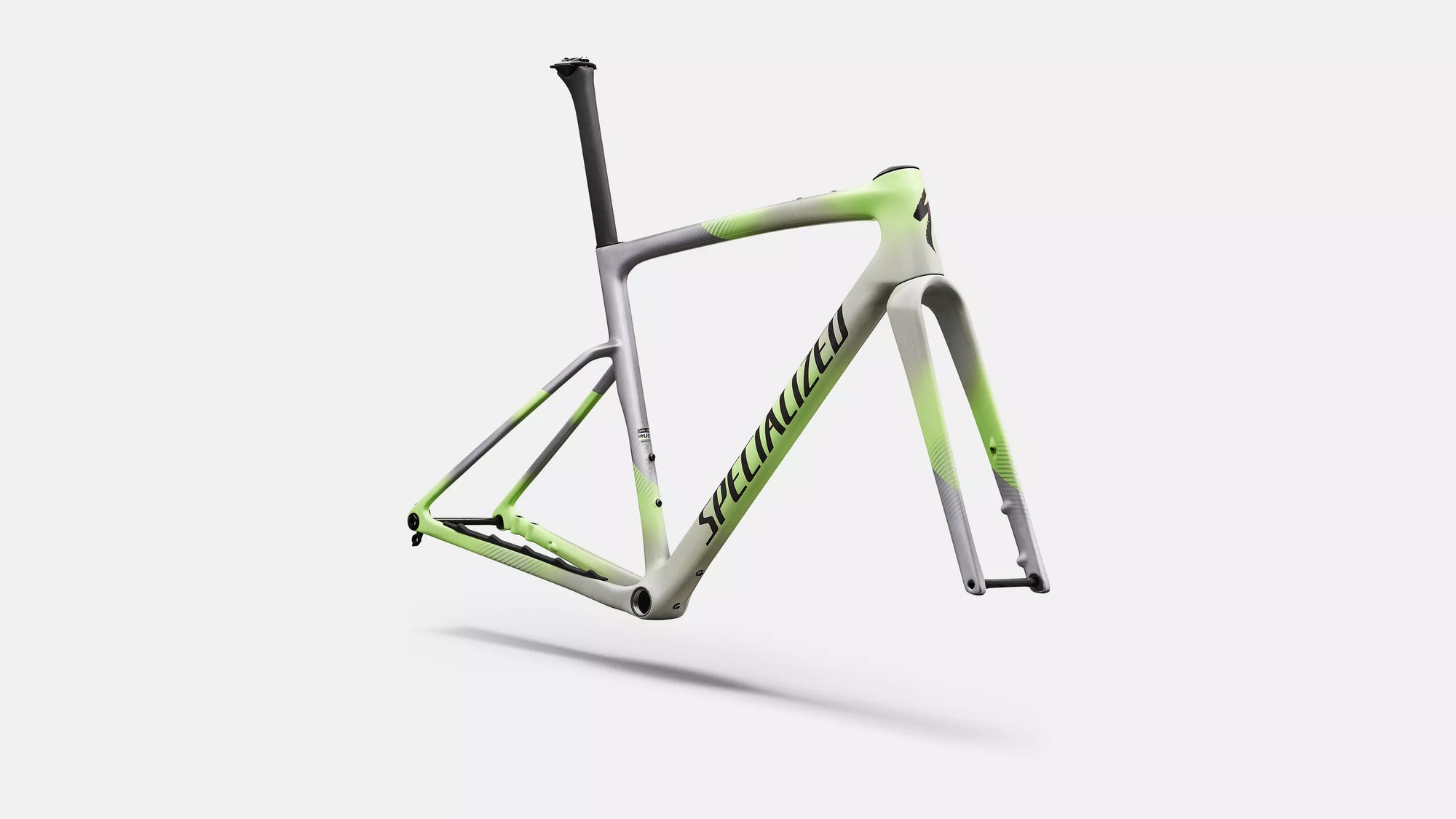

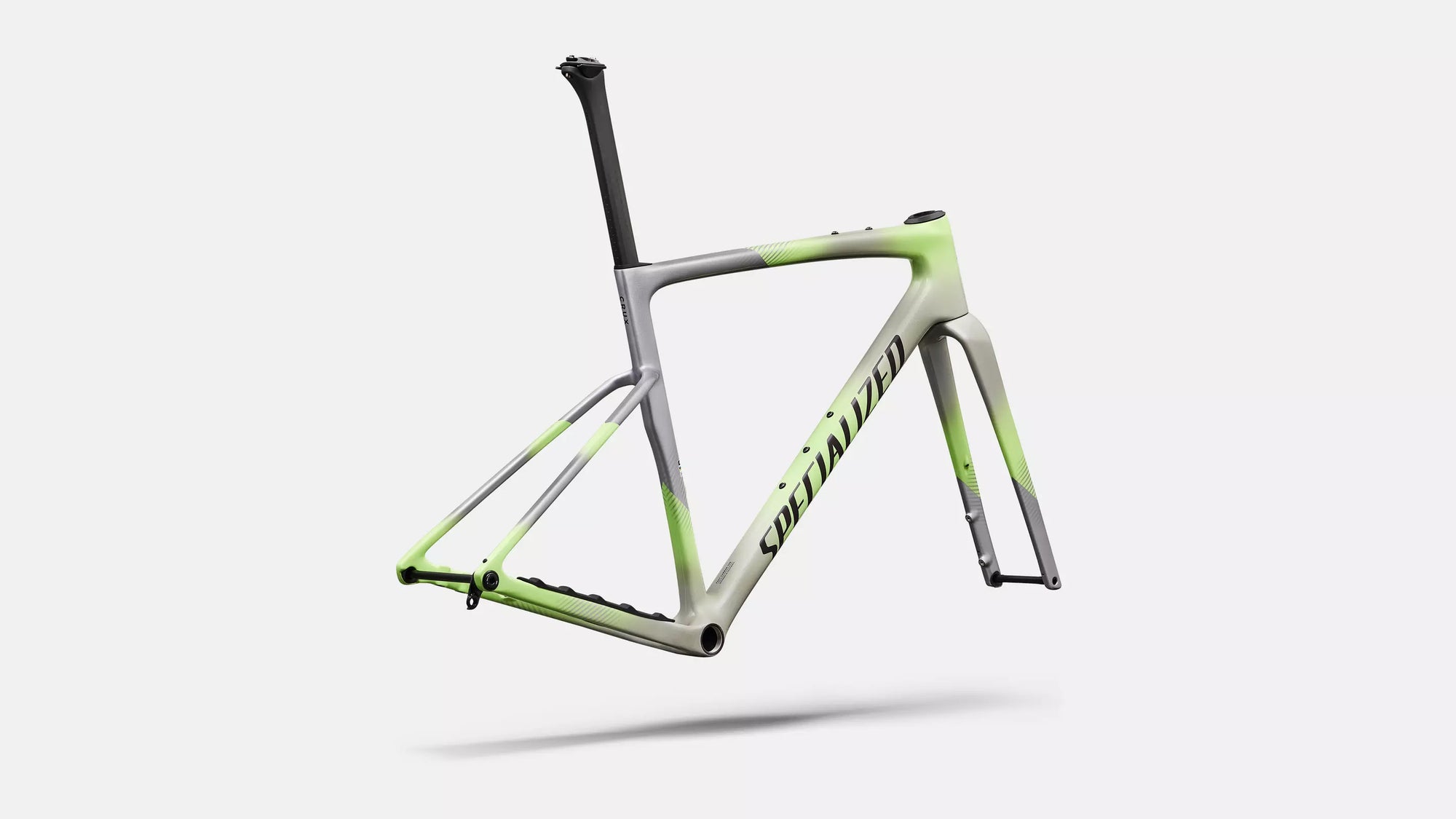

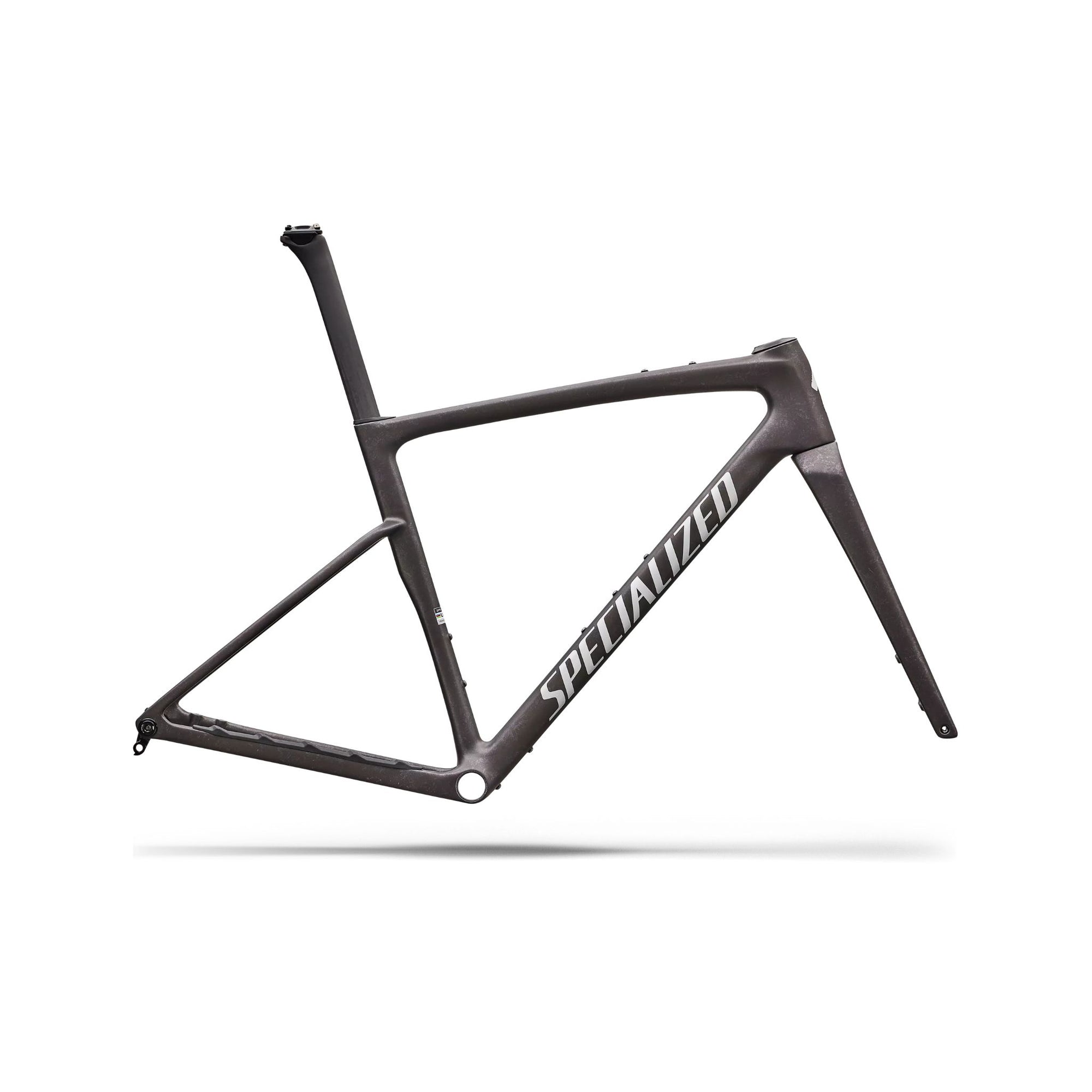

2027 Specialized Crux 5 Frameset
Pickup available at Cycle House Greensborough
Usually ready in 24 hours
2027 Specialized Crux 5 Frameset
Color: Warm Smoke Metallic/silver Dust | Size: 54
-
Cycle House Greensborough
Pickup available, usually ready in 24 hours
167 Para Road
Greensborough VIC 3088
Australia
Description
Crux 5 Frameset
Eat My Dust
The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated for real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.
At a Glance
Use: Gravel Racing
Frame: FACT 10r Carbon
Fork: FACT 12r Carbon
Seatpost: S-Works Tarmac Seatpost
Bottom Bracket: 68mm BSA Threaded
Frame Weight: 897 grams
Technical Specifications
- Frame
- Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
- Fork
- S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
- Seatpost
- S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
- Seat Binder
- Integrated Wedge
- Product ID
- 295003
- Weight
- 1.75 kg (3 lb, 13.7 oz)
- Weight Size
- 56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Stem Length | 70 | 80 | 90 | 100 | 110 | 110 |
| Seatpost Length | 300 | 300 | 380 | 380 | 380 | 380 |
| Stack | 530 | 547 | 560 | 578 | 598 | 621 |
| Reach | 375 | 382 | 388 | 400 | 412 | 425 |
| Head Tube Length | 95 | 110 | 125 | 142 | 163 | 188 |
| Head Tube Angle | 70.5 | 70.75 | 71 | 71.5 | 71.5 | 71.5 |
| BB Height | 278 | 278 | 280 | 280 | 280 | 280 |
| BB Drop | 80 | 80 | 78 | 78 | 78 | 78 |
| Trail | 72 | 71 | 69 | 66 | 66 | 66 |
| Fork Length, Full | 401 | 401 | 401 | 401 | 401 | 401 |
| Fork Rake/Offset | 51 | 51 | 51 | 51 | 51 | 51 |
| Front Center | 594 | 604 | 613 | 626 | 644 | 665 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 1008 | 1016 | 1026 | 1039 | 1057 | 1078 |
| Top Tube Length, Horizontal | 512 | 534 | 543 | 566 | 583 | 603 |
| Bike Standover Height | 753 | 766 | 781 | 803 | 823 | 849 |
| Seat Tube Length | 445 | 456 | 473 | 497 | 515 | 545 |
| Seat Tube Angle | 75.5 | 74.5 | 74.5 | 74 | 74 | 74 |
