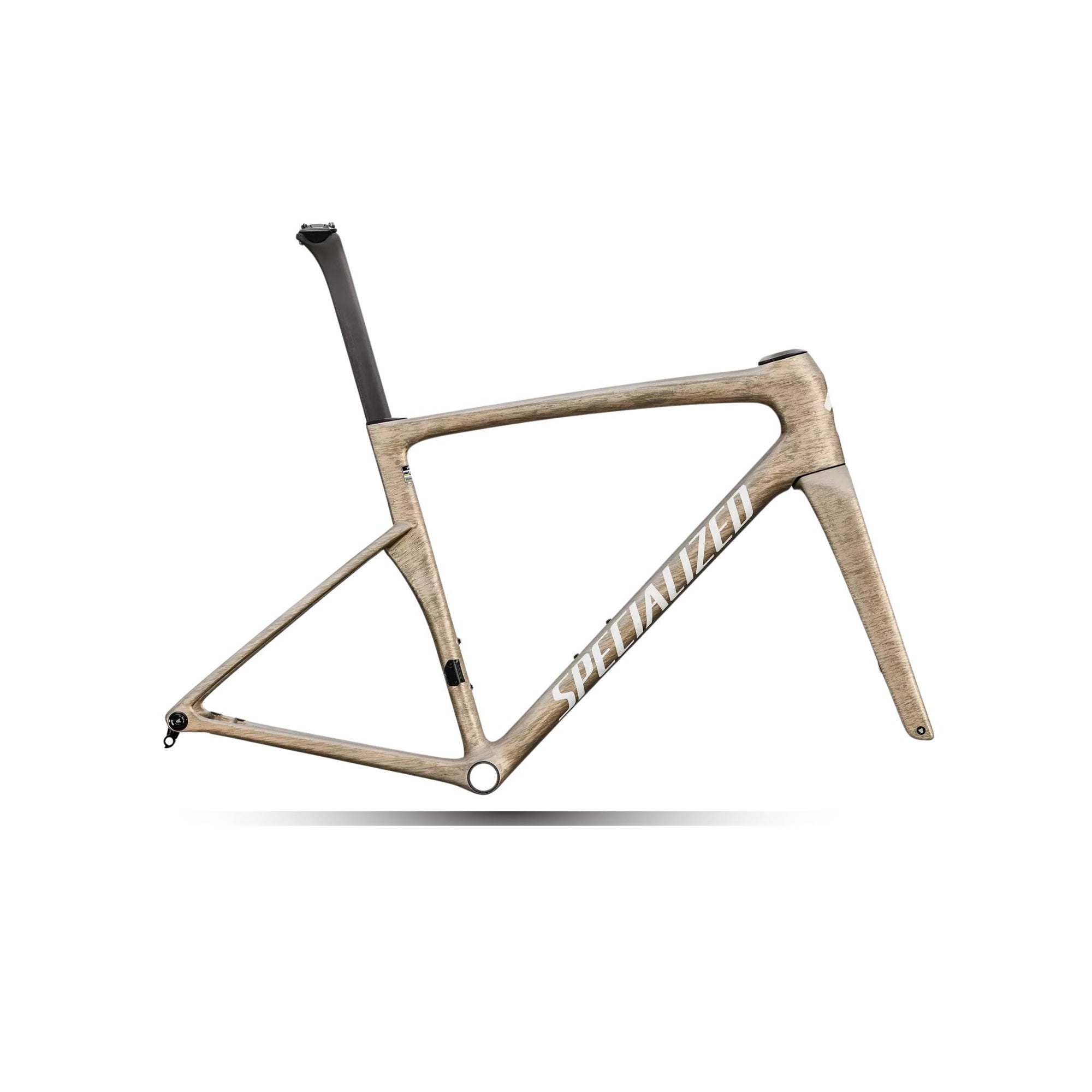

2027 Specialized Tarmac SL9 Frameset
Pickup available at Cycle House Greensborough
Usually ready in 24 hours
2027 Specialized Tarmac SL9 Frameset

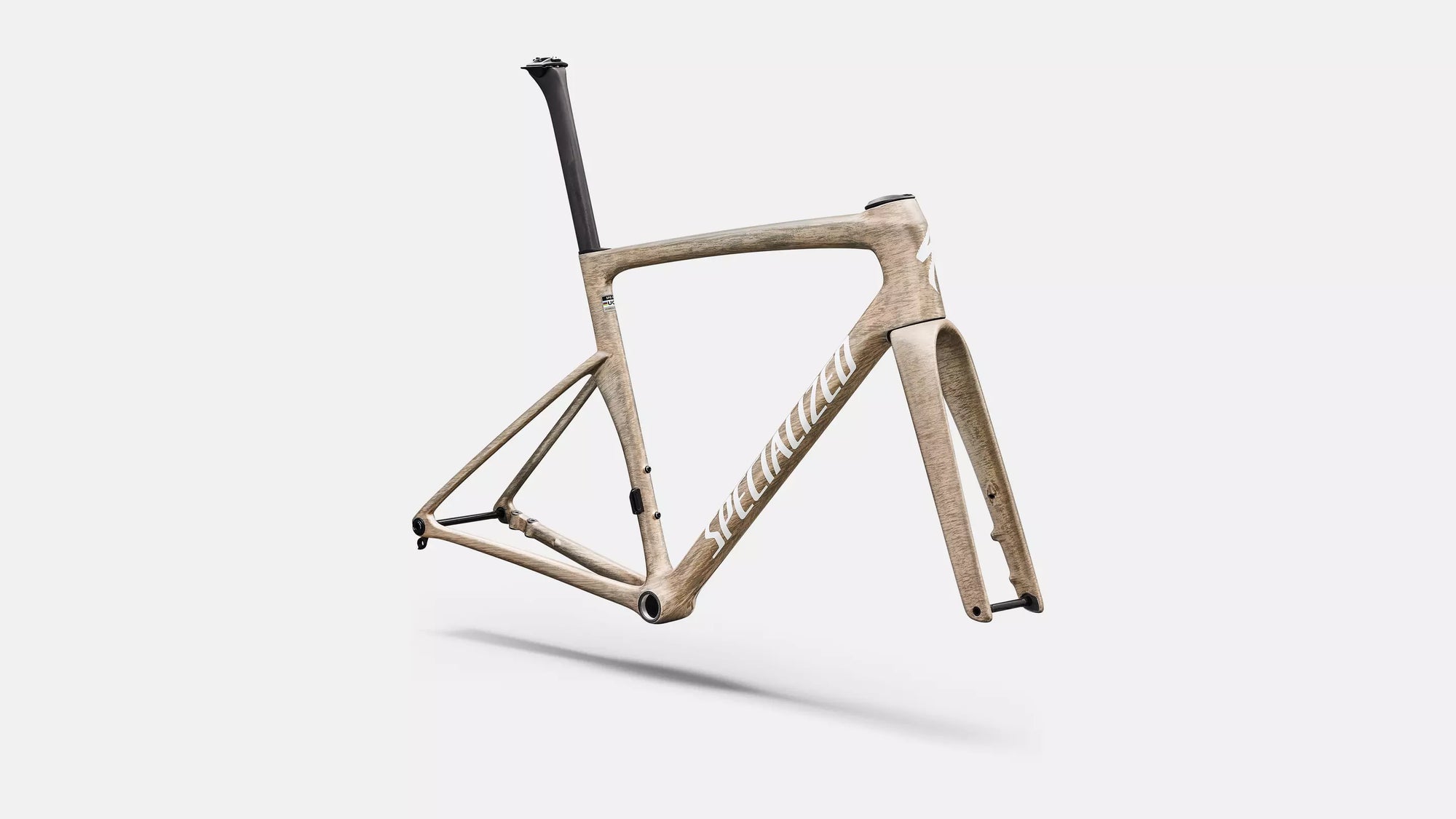

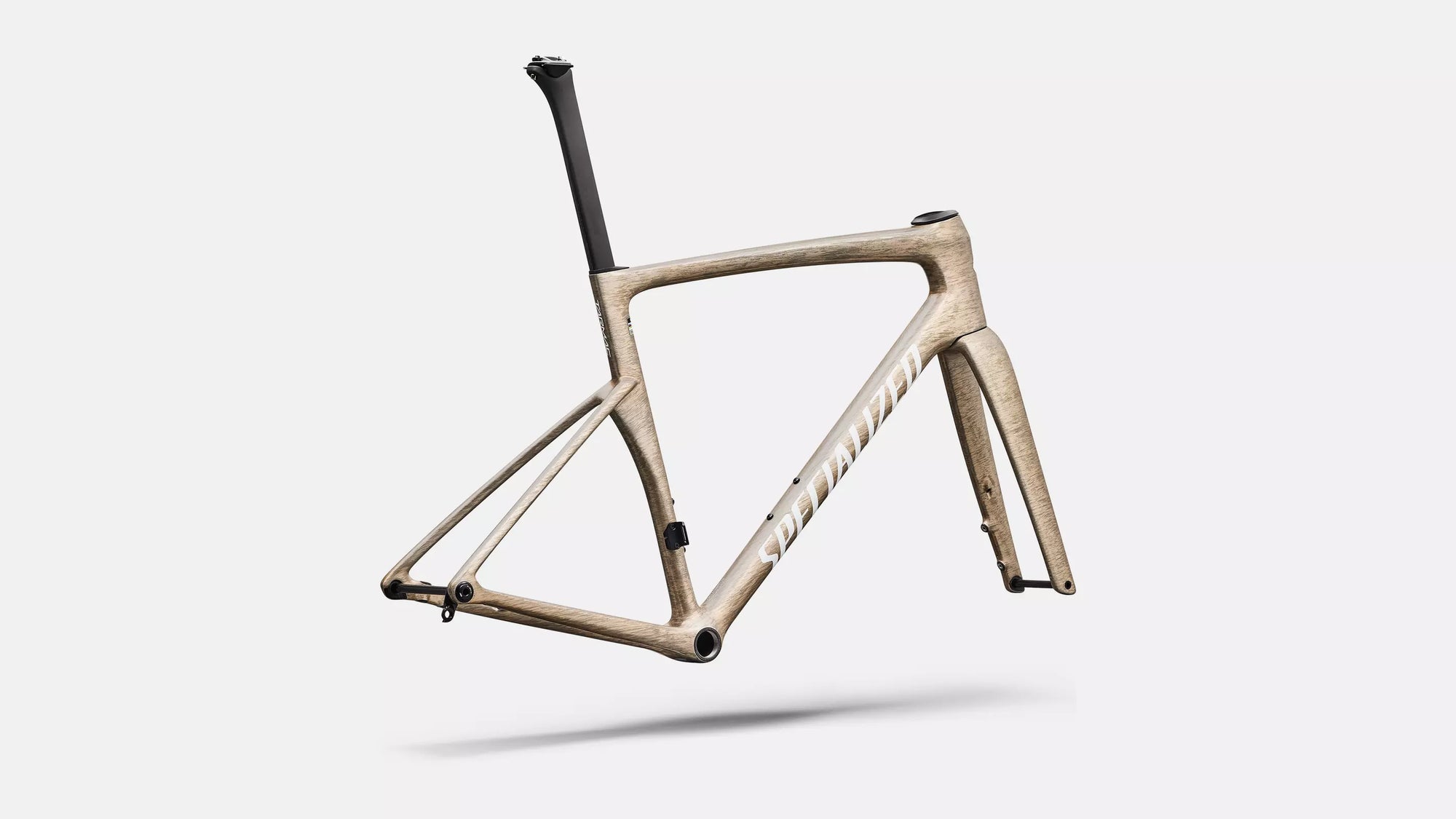

Color: Gloss Photon Tint / White Silver Metallic | Size: 56
-
Cycle House Greensborough
Pickup available, usually ready in 24 hours
167 Para Road
Greensborough VIC 3088
Australia
Description
*** Frames available on backorder. Please contact us direct for an eta on your desired colour and frame size.
Tarmac SL9 Frameset
One Bike To Rule Them All
The Tarmac SL9 was born from the fastest road frame set ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.
At a Glance
Use: Road Racing
Frame: FACT 10r Carbon
Fork: FACT 12r Carbon
Seatpost: S-Works Tarmac Seatpost
Bottom Bracket: 68mm BSA Threaded
Weight: 822 grams
Technical Specifications
- Frame
- Tarmac SL9 FACT 10r Carbon, Rider First Engineered, Win Tunnel Engineered, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
- Fork
- FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
- Seatpost
- S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
- Seat Binder
- Tarmac integrated wedge
- Product ID
- 295005
- Weight
- 1.64kg (3 lb, 9.8 oz)
- Weight Size
- 56
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| Seatpost Length | 300 | 300 | 300 | 380 | 380 | 380 | 380 |
| Frame Stack | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| Frame Reach | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| Stack to Stem | 509 | 522 | 535 | 552 | 573 | 599 | 620 |
| Reach to Stem | 363 | 372 | 377 | 381 | 393 | 400 | 406 |
| Head Tube Length | 99 | 109 | 120 | 140 | 157 | 184 | 204 |
| Head Tube Angle | 70.5 | 71.75 | 72.5 | 72.5 | 73.5 | 73.5 | 74 |
| BB Height | 266 | 266 | 266 | 268 | 268 | 268 | 268 |
| BB Drop | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| Trail | 71 | 63 | 58 | 58 | 55 | 55 | 52 |
| Fork Length, Full | 370 | 370 | 370 | 370 | 370 | 370 | 370 |
| Fork Rake/Offset | 47 | 47 | 47 | 47 | 44 | 44 | 44 |
| Front Center | 567 | 570 | 572 | 582 | 587 | 602 | 609 |
| Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase | 970 | 973 | 975 | 986 | 991 | 1006 | 1013 |
| Top Tube Length, Horizontal | 496 | 509 | 531 | 540 | 563 | 577 | 595 |
| Bike Standover Height | 722 | 734 | 745 | 767 | 785 | 807 | 833 |
| Seat Tube Length | 433 | 445 | 456 | 473 | 494 | 515 | 545 |
| Seat Tube Angle | 75.5 | 75.5 | 74 | 74 | 73.5 | 73.5 | 73 |
