K-EDGE Integrated Handlebar System Mount for Garmin

For the latest info on product compatibility and installation, check the K-Edge website by clicking HERE

World Tour tested and proven.  The ultimate one-piece bar/stem systems call for an elite level mount that positions your computer solidly out-front and aero.

All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot (see installation instructions). Failure to do so will void the lifetime warranty.

Attributes (specs):

• For Integrated Handlebar (one piece) bar/stem
• Pro-level mount with -7 degree articulation for custom computer positioning
• Lifetime warranty. CNC Machined. Black Anodized
• GARMIN approved replaceable computer insert protects computer tabs
• Not combo compatible (choose K13-2500iC mount for Combo use)
• M5 hardware included. If a smaller bolt required, use an 8.4mm washer to ensure a secure fit
• Made in-house. Boise, Idaho USA

Compatibility:

• All Garmin cycling computers up to EDGE 1050
• Most Canyon integrated handlebar-stem systems (not compatible with Canyon H36 integrated bar).  **M4x20mm 0.7 thread pitch hardware not included.**
• Click Here for our Canyon Fit Kit
• Combo Adapter (K13-580-BLK) is NOT compatible and will void the lifetime warranty.
• NOT COMPATIBLE WITH: CERVELO WISHBONE SYSTEM (ABO8, CS028 V-STEM), VENTUM INTEGRATED HANDLEBARS, COLNAGO R41 STEM, VISION METRON 5D, BLACK INC. INTEGRATED HANDLEBARS, BMC ICS HANDLEBARS/STEMS, SCOTT SYNCROS INTEGRATED HANDLEBARS, CANYON CP0039, CP0047, H11, and H36.

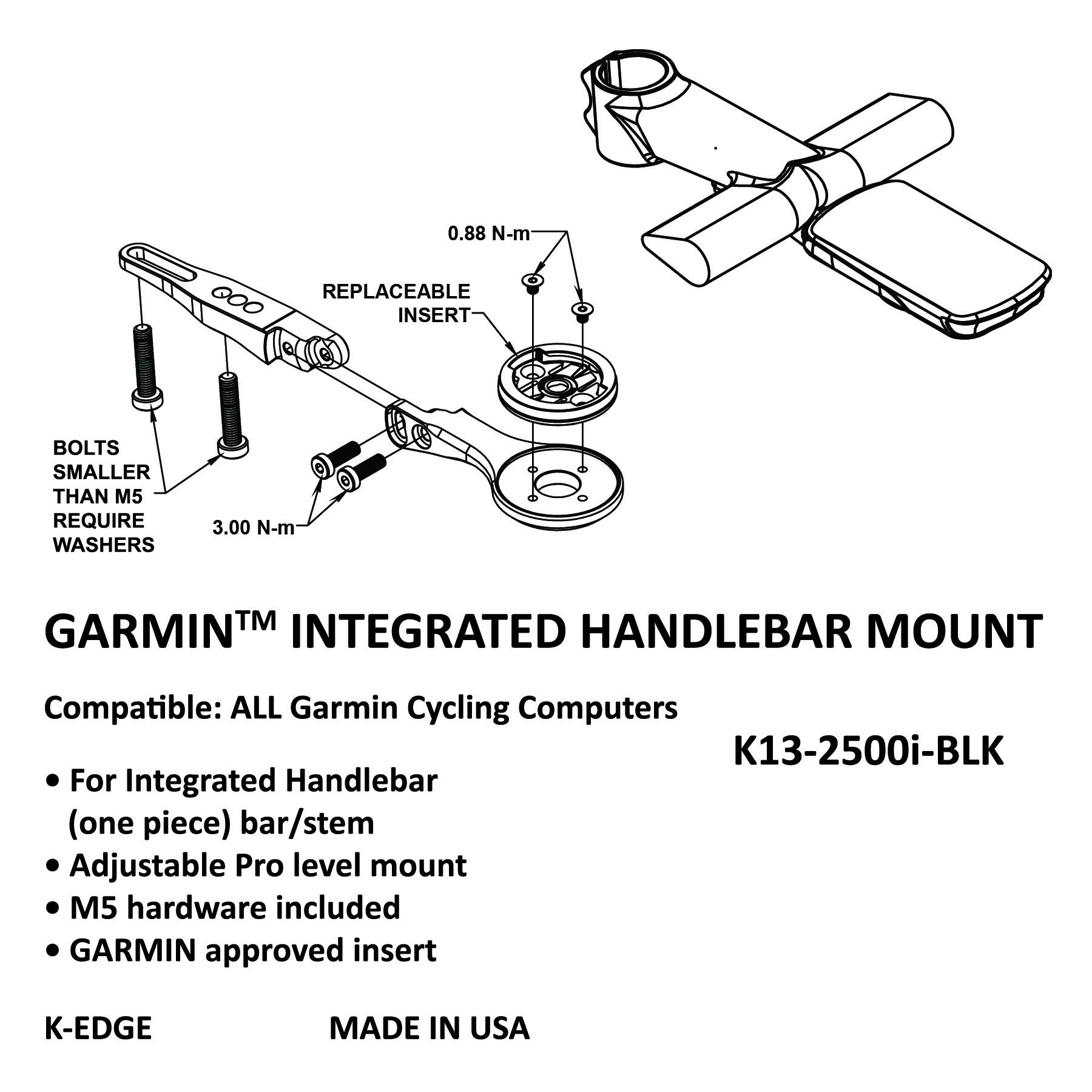

Installation:

• All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot. Failure to do so will void the lifetime warranty.
• All IHS mounts must be directly mounted to the handlebar without the use of shims or adapters.
• Installation of an IHS mount in any orientation that is not following the above guidelines will void the K-EDGE lifetime warranty.
